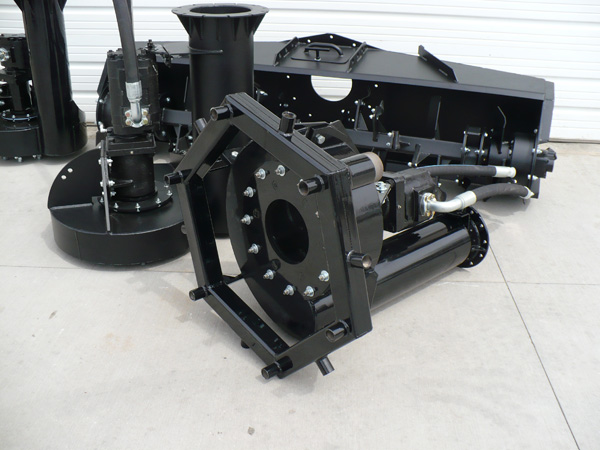

Hydraulic Submersible Pumps

Rugged and lightweight these pumps are well suited for high volumes of water and viscous materials.  We offer 4 inch through 14 inch submersible pumps. They are not limited by a suction line, which makes them ideal for sewer by-pass and pumping from sump pits.  They can pass trash, debris, even rags and stringy material.  They are primarily used for:

• Water Transfer
• Sludge Pumping
• Sewer By-Pass
• Hand Dredging

Our hydraulic submersible pumps handle trash and debris extremely well and use abrasion resistant materials.  The pump flows up to 3800 gpm. Although most of our pump line consists of diesel powered submersible pumps, we do offer options to accomodate those who prefer to use their PTO driven power source for their pump.

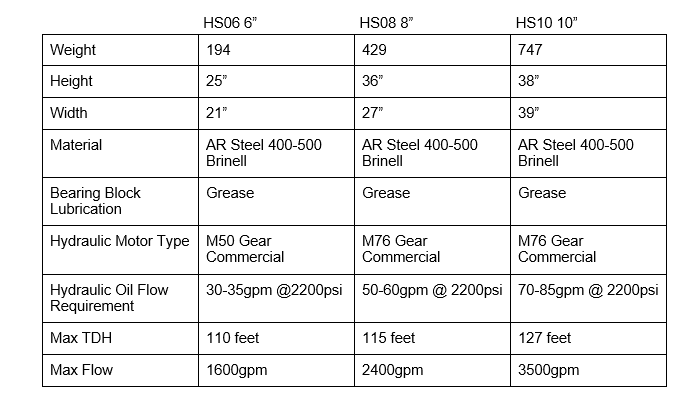

Submersible Pump Specs:

Dino Pumps are not limited by a suction line which makes them ideally suited for Sewer By-Pass and Sludge Pumping.  Rugged yet lightweight, they are able to handle large amounts of trash, thick viscous sludge, and abrasive materials. The Dino Pump is not damaged by rocks or other hard debris and able to pass weeds, pieces of rope and rag type materials.  Using a combination of abrasion resistant steel we cut, cold form, fit and weld our pumps and components in-house.

                                                 HS06  6”            HS08  8”               HS10  10”

Downloads:

• Spec Download
• Pump Cut Away
